Design Purpose
A fuel transfer trailer that could be towed behind a vehicle, UTV,ATV, Lawn Mower and is street legal. Capable of holding up to 100gallons and 15ft hose with 15gpm pump for lake side filling of watercraft.

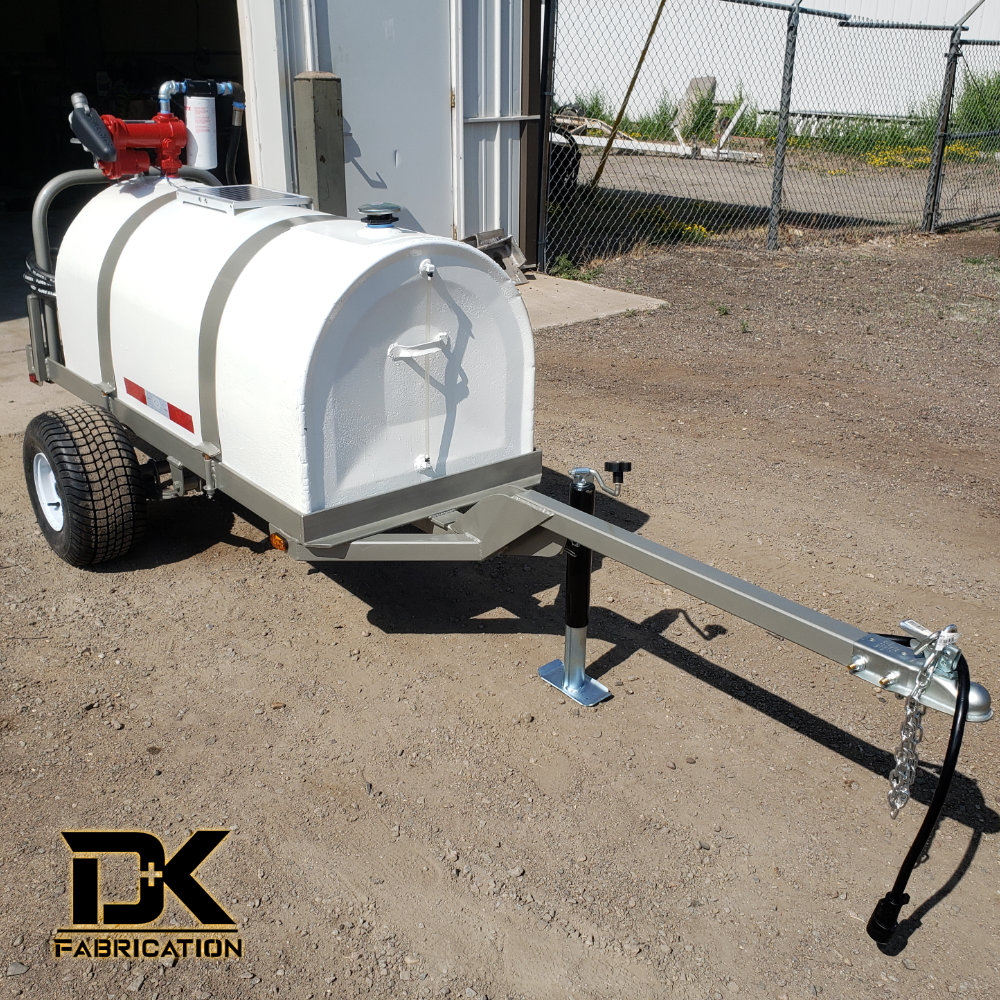

The Design:
- This trailer was made from a scrap oil tank cut in half and welded on the flat end.
- Bungs were added for fuel sight gauge, pump connections and spark proof vented filler cap.
- The transfer setup features fuel filtration, a deep cycle battery and solar trickle charger for remote pumping.
Features:
- Road Legal – The trailer features all the common amenities needed to be road legal, LED lighting, safety chains, conspicuity tape.
- Easy to Use – The transfer setup features fuel filtration, a deep cycle battery and solar trickle charger for remote pumping.
- Light Weight – The trailer is well balanced and can be maneuvered by a single individual very easily when the tank is empty.
- Strength – Made using 3/8 angle iron and square tubing the trailer is equipped with a 2000lb load rating axle.
